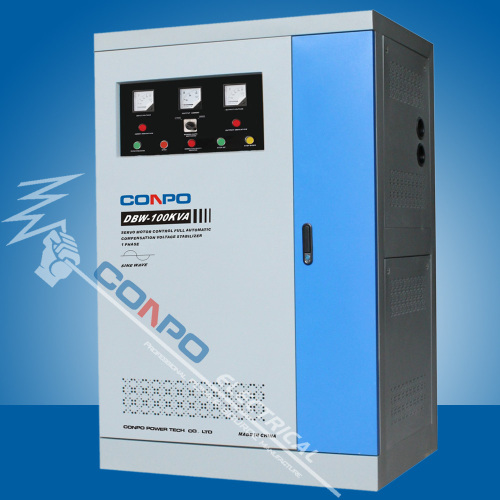

Full-Auotmatic Compensated Voltage Stabilizer/Regulator
| Payment Terms: | T/T,L/C |
| Place of Origin: | Jiangsu, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Model No.:
DBW-80KVA/100KVA/120KVA
Production Capacity:
2000units/Year
Phase:
Single Phase
Brand Name:
CONPO
Means of Transport:
Ocean
Packing:
Standard Package
Current Type:
AC
.
Feature:
This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe. It is provided with two systems of manual/automatic dual control, direct output and stabilizing output with the functions of over/under-voltage protection, delay and error protection etc., it is reliable and suitable for any load.
This series large power voltage stabilizer is an energy-saving new product developed by our company by absorbing the advanced technology of Western Europe. It is provided with two systems of manual/automatic dual control, direct output and stabilizing output with the functions of over/under-voltage protection, delay and error protection etc., it is reliable and suitable for any load.
Application:
It is widely used in the place with large electricity demands such as factories, post & communication, schools, hotel etc., acted as whole voltage-stabilization single voltage-stabilizing.
It is widely used in the place with large electricity demands such as factories, post & communication, schools, hotel etc., acted as whole voltage-stabilization single voltage-stabilizing.
Specification:
Phase No.: Single phase
Input voltage:
220V+/-20%(176~264VAC) or 220V+/-30%(154~286VAC) (Optional)
Output voltage: 220VAC
Accuracy of voltage: +/-2-5%(adjustable)
Frequency: 50Hz/60Hz
Efficiency: >95%
Response time: ≤ 1.5S(against 10% input voltage deviation)
Ambient Temperature: -10C~+40C
Insulation resistance: >2MΩ
Waveform distortion: Non additional waveform distortion
Protection: Over voltage, over current, overloading, machine fault indication etc.
Over-load capacity: 1min. At the rated current of 2times
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without breakdown and flash over when it lasts 1min.
Phase No.: Single phase
Input voltage:
220V+/-20%(176~264VAC) or 220V+/-30%(154~286VAC) (Optional)
Output voltage: 220VAC
Accuracy of voltage: +/-2-5%(adjustable)
Frequency: 50Hz/60Hz
Efficiency: >95%
Response time: ≤ 1.5S(against 10% input voltage deviation)
Ambient Temperature: -10C~+40C
Insulation resistance: >2MΩ
Waveform distortion: Non additional waveform distortion
Protection: Over voltage, over current, overloading, machine fault indication etc.
Over-load capacity: 1min. At the rated current of 2times
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without breakdown and flash over when it lasts 1min.
Package:
Qty. /Pkg.: 1Unit/Pkg.
Pkg. Size: 66x90x156cm
Qty. /Pkg.: 1Unit/Pkg.
Pkg. Size: 66x90x156cm
Remarks:
Custom-made specifications are acceptable.
Custom-made specifications are acceptable.
