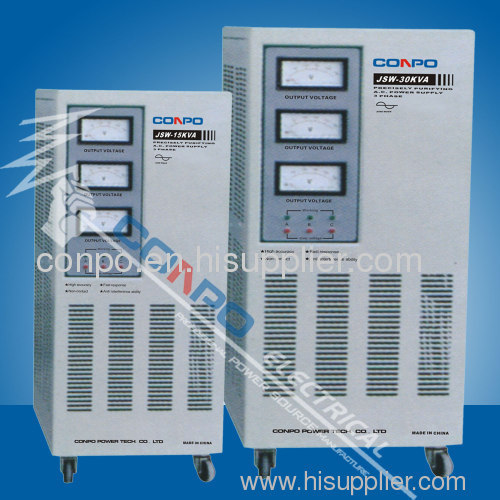

JSW Series Precision Purified Voltage Stabilizer
| Payment Terms: | T/T,L/C |
| Place of Origin: | Jiangsu, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Means of Transport:
Ocean
Packing:
Standard Package
Current Type:
AC
Production Capacity:
2000units/Year
Phase:
Three Phase
Brand Name:
CONPO
.
Feature:
JSW series precise purifying AC. Power Supply adopts the power regulation technology of sine energy distribution formula, which is advanced in the world and represents the latest development of AC. Stabilizing technology. Its circuit is composed of sine energy distributor and large power wave filter by paralleling. It has the advantages as high accuracy of stabilization, strong overload capacity, high efficiency, successively working for long period and long service time etc., it is an ideal replacement for the 614 series electronic voltage stabilizer and magnetic saturating voltage stabilizer, also it can provide a quiet and reliable working environment.
JSW series precise purifying AC. Power Supply adopts the power regulation technology of sine energy distribution formula, which is advanced in the world and represents the latest development of AC. Stabilizing technology. Its circuit is composed of sine energy distributor and large power wave filter by paralleling. It has the advantages as high accuracy of stabilization, strong overload capacity, high efficiency, successively working for long period and long service time etc., it is an ideal replacement for the 614 series electronic voltage stabilizer and magnetic saturating voltage stabilizer, also it can provide a quiet and reliable working environment.
Application:
It is suitable in computer network projectelectronic instrumentsarmarium esearch institutemeasurement and test device
Factory test board and so on.
It is suitable in computer network projectelectronic instrumentsarmarium esearch institutemeasurement and test device
Factory test board and so on.
Specification:
Phase No.: Three phase
Input voltage: 320~430VAC
Output voltage: 380VAC
Accuracy of voltage: +/-1%
Frequency: 50Hz+/-2Hz
Efficiency: >90%
Response time: ≤ 20ms~100ms
Ambient Temperature: -10C~+40C
Insulation resistance: ≥ 2MΩ
Waveform distortion: < 5%
Protection function: Over voltage, over current and strong overloading etc.
Phase No.: Three phase
Input voltage: 320~430VAC
Output voltage: 380VAC
Accuracy of voltage: +/-1%
Frequency: 50Hz+/-2Hz
Efficiency: >90%
Response time: ≤ 20ms~100ms
Ambient Temperature: -10C~+40C
Insulation resistance: ≥ 2MΩ
Waveform distortion: < 5%
Protection function: Over voltage, over current and strong overloading etc.
Package:
Qty. /Pkg.: 1Unit/Pkg.
Pkg. Size: 70x55x115cm
Qty. /Pkg.: 1Unit/Pkg.
Pkg. Size: 70x55x115cm
Remarks:
Custom-made specifications are acceptable.
Custom-made specifications are acceptable.
| Model | Rated Power | Package Size(Approx. ) | Qty. Per Pkg |
| JSW-6KVA | 6KVA | 58*39*86CM | 1UNIT/PKG |
| JSW-9KVA | 9KVA | 58*39*86CM | 1UNIT/PKG |
| JSW-15KVA | 15KVA | 63*41*96CM | 1UNIT/PKG |
| JSW-20KVA | 20KVA | 70*55*115CM | 1UNIT/PKG |
| JSW-30KVA | 30KVA | 70*55*115CM | 1UNIT/PKG |
| JSW-50KVA | 50KVA | 76*71*130CM | 1UNIT/PKG |
| JSW-80KVA | 80KVA | 96*80*155CM | 1UNIT/PKG |
| JSW-100KVA | 100KVA | 96*80*155CM | 1UNIT/PKG |
